Our Projects
From the African wilderness to South American industrial facilities, Helical Foundation Systems delivers helical pile solutions that perform under the most demanding conditions. Each project showcases our commitment to precision, sustainability, and structural excellence.
Explore our portfolio of successful installations across diverse industries and challenging environments.
Featured Projects

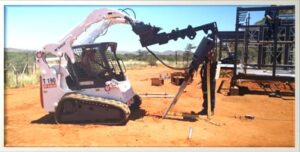

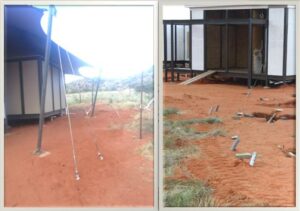

Safari Tent Camp – Tswalu Kalahari Private Game Reserve
Northern Cape, South Africa | January 2023
Supporting an expanded safari tent system in the pristine Kalahari Desert required anchoring guy cables in very loose sand while preserving the delicate ecosystem. We installed 96 helical tension anchors (model TS238254) designed for 76kN maximum working loads, achieving structural stability at 6-meter depths despite challenging conditions. The project was completed in just 8 days with minimal desert disruption.
Project Highlights:
- 96 TS238254 tension anchors
- 6-meter installation depth
- 8-day timeline
- Recreational new construction
Partners: African Helical Pile & Anchor Company (Installation), de Villiers Sheard Consulting Engineers (Structural Engineering), Kobus Duvenhage Builders (General Contractor), Helical Anchors Inc. (Manufacturer)
Haru Oni Green Hydrogen Plant
Punta Arenas, Magallanes Region, Chile | August – September 2021
Chile’s world-first integrated climate-neutral synthetic fuel facility demanded foundations supporting industrial loads while meeting environmental sustainability goals. We installed 185 helical piles (model RS2875) with three-helix configurations, handling design loads of 28.4 to 30.11 metric tons in loose to firm clay soils. Installation depths ranged from 4.0 to 5.0 meters, completed over 46 days including load testing—a perfect alignment of sustainable foundation technology supporting sustainable energy production.
Project Highlights:
- 185 RS2875 three-helix piles
- 28.4 – 30.11 tonf design loads
- 4.0 – 5.0 meter depths
- Industrial new construction
Partners: EMIN Sistemas Geotécnicos S.A. (Installation), Highly Innovative Fuels (General Contractor), Helical Anchors Inc. (Manufacturer)

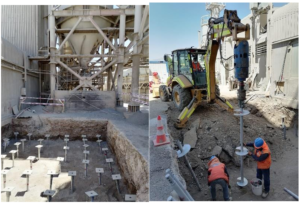

Henkel Mortar Plant Silos
Quilicura, Chile | November 2020
Three large silos and industrial plant equipment required high-capacity foundation support handling both compression and tension loads in fine soil conditions. We installed 40 RS2875 helical piles to 10-meter depths through clays and silty sands, engineered for maximum working loads of 35.8 metric tons compression and 21.5 metric tons tension. The entire project was completed in just 12 days, providing verified load capacity and long-term stability for critical manufacturing infrastructure.
Project Highlights:
- 40 RS2875 helical piles
- 35.8 tonf compression capacity
- 21.5 tonf tension capacity
- 12-day timeline
Partners: EMIN Sistemas Geotécnicos S.A. (Installation), Roni S.p.A. (General Contractor), Helical Anchors Inc. (Manufacturer)

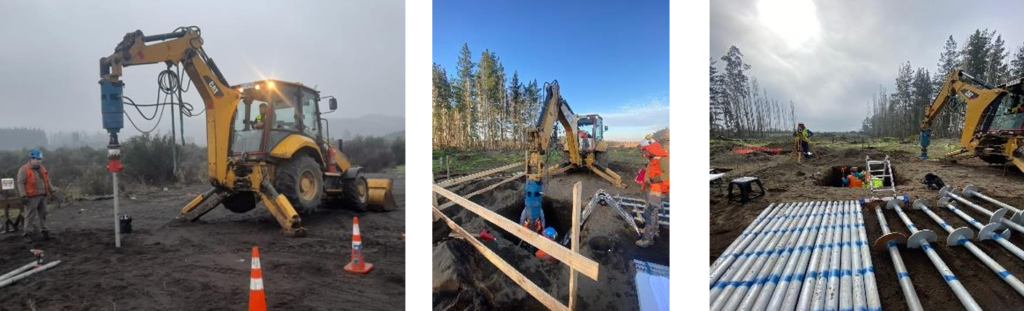

Campo Lindo Transmission Line
Chile | August 2022
A new 220kV transmission line required rapid foundation installation across varied terrain with minimal environmental disturbance. We installed 2-7/8″ OD helical piles with 10″ and 12″ helix-bearing plates at variable depths throughout the corridor, totaling 3,602 linear feet through sands, silty sand, and clay layers. Completed in 1.5 months, the transmission infrastructure now delivers reliable power supported by foundations engineered for long-term performance across diverse soil conditions.
Project Highlights:
- 3,602 linear feet installation
- 220kV transmission capacity
- 2-7/8″ OD with 10″ & 12″ helices
- 1.5-month timeline
Partners: EMIN SG (Installation), ISOTRON (General Contractor), AES GENER (Owner), Helical Anchors Inc. (Manufacturer)

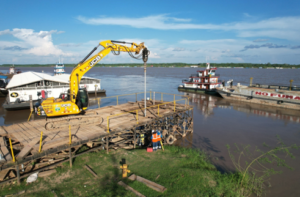

Pucallpa Pier Reinforcement
Amazonian Rainforest, Eastern Peru
Reinforcing a main pier structure in Peru’s Amazonian Rainforest required a foundation solution implementable in a remote, environmentally sensitive location with challenging access. Working with our local Peru partner, we designed, supplied, and installed custom helical piles specifically engineered for pier reinforcement. The solution addressed structural stability needs while minimizing impact on the surrounding rainforest ecosystem, providing stable long-term infrastructure serving the Pucallpa community with minimal environmental footprint in one of the world’s most ecologically important regions.
Project Highlights:
- Remote rainforest location
- Pier reinforcement application
- Environmental sensitivity priority
- Infrastructure repair
Partners: Local Peru partner (Engineering & Installation), Helical Anchors Inc. (Manufacturer)

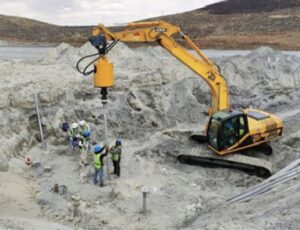

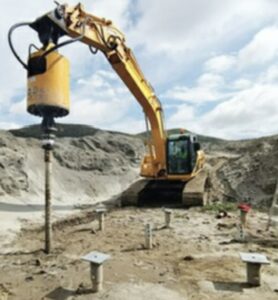

Jales Dam Transportation Band Foundation
Zacatecas, Mexico | September 2020
Supporting a transportation band system on a tailings dam required helical piles handling high compression and tension loads in loose silty sand. We installed combo helical piles with round shafts and three-helix configurations, embedded 14 meters deep through loose to medium-dense silty sand. Each pile was designed for 440kN compression and 530kN tension loads. Completed in just 3 days, the transportation band foundation now operates reliably, supporting critical material handling infrastructure with verified load capacity in challenging dam conditions.
Project Highlights:
- Combo round shaft with three helices
- 440kN compression, 530kN tension
- 14-meter installation depth
- 3-day timeline
Partners: Soilsolution SAPI de CV (Installation), M3 Engineering & Technology (Structural Engineering), Capstone (General Contractor), Helical Anchors Inc. (Manufacturer)
What These Projects Demonstrate
Global Expertise
From African deserts to South American rainforests, we deliver helical pile solutions across continents and climates.
Diverse Applications
Our portfolio spans recreational, industrial, infrastructure, and energy projects—each with unique engineering demands.
Environmental Responsibility
Every project reflects our commitment to minimal site disruption and sustainable construction practices.
Proven Performance
Load-tested, engineer-approved installations that meet or exceed design specifications in challenging conditions.
Collaborative Excellence
We work seamlessly with international contractors, engineers, and manufacturers to deliver project success.
